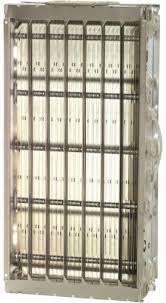

DetailsHoneywell 203368 Replacement Prefilter For F50F,F300, 2-Pack Buy "Honeywell FC37A1130 Electronic Air Cleaner Cell, 1...” from Amazon Warehouse Deals and save 43% off the $269.67 list price. 12.4 in. x 16 in An Electronic Air Cleaner Cell consisting of an ionizer section and a collector section to be used as a component in a residential electronic air cleaner Shipping Weight: 7.4 pounds (View shipping rates and policies) Item model number: FC37A1130 #118,043 in Industrial & Scientific (See Top 100 in Industrial & Scientific) Honeywell FC37A1064 Replacement Electronic Cell For 20-Inch by 25-Inch AirDetailsHoneywell 50000293-004 20"x25" Postfilter for Honeywell Electronic Air Cleaners FREE Shipping on orders over $49. DetailsHoneywell 203369 F50F F300 Prefilter - 2 PACK Buy "Honeywell FC37A1064 Replacement Electronic Cell Fo...” from Amazon Warehouse Deals and save 64% off the $456.63 list price. 25.2 x 15.9 x 6.9 inches #158,514 in Home Improvements (See top 100)

#90 in Home Improvement > Building Supplies > HVAC > Thermostats & Accessories > Accessorieshoneywell quietclean oscillating tower air purifier review #1,151 in Home & Kitchen > Heating, Cooling & Air Quality > Air Purifiers > Parts & Accessoriesphilips air cleaner hr 4383 9.3 pounds (View shipping rates and policies)riteway air duct cleaning Works like electronic air filter is new. This item misrepresented what it contained. It did not work as described. Honeywell FC37A1130 Electronic Air Cleaner Cell, 12.4" x 16" Honeywell have replaced this power box with a new part named the PS1201B25. Visit the replacement product page. Assembled Honeywell 208417R power box for F300 F50F Series Two 20x25 with all internal components.

The power box includes the power supply board, air flow sensor, interlock switch, on-off switch, neon light, 60" power cord with 3-prong plug. The power box underside has the contacts for the two cells. Simple to install with two screws and then plug in. In addition, it's protected under Honeywell 2 year warranty on replacement parts. This power box has an overall size of 24½ x 6½ x 3 inches and replaces part number 203314A and 208417A. Compatible with the W8600F LCD remote indicator. If you have the W8600E LED remote indicator then order the series one 208417Q, see below for more info. Fits the F58F1000 and the highlighted models: Series One or Series Two All F300A or F300E should use Series Two. All F50F F58F should use the Series Two power box unless you have the W8600E remote indicator. The remote indicator is optional. It primarily provides the same function as the neon lamp. Ideal for installations where the unit is not seen or heard. If you have the early W8600E indicator shown top-left, then you need the Series One power box.

The Series One power box has additional circuitry for this indicator. If you have the newest W8600F indicator, then use the Series Two power box. The Series One power box is also compatible with the W8600F when the W8600E circuitry is removed. If you do not have either remote indicator, choose the Series Two power box. The Series One power box would be compatible but has unnecessary W8600E circuitry. The W8600F was introduced in 1998 and was originally available in white or taupe, but the taupe was discontinued mid 2006. The W8600F is now only available in white. Though the W8600E was replaced by the W8600F in 1998, the W8600E was available as a replacement part until 2004. We no longer have any W8600E left. The power box is simply removed by removing two screws. The screws are behind the access door. Here is our procedure to test the power supply board. These tests are without the cells connected, the arc will be twice the length with cells connected. See Spark Test Tech Note pdf.

Cell Contains 3 Contacts but Only 2 Used You may have noticed there are 3 contacts on the cell pad but only two contacts at the power box. This allows the F50-F300 to be installed with either right or left air flow. The cell can be rotated allowing an installation with opposite air flow. Only two contacts are used, the center contact and one end contact. Photo animation shows when the cell is rotated, the contacts maintain the correct connections. The center contact powers the ionizing wires. The two outside contacts are connected and power the collector plates. F300A Quick Parts Swap If you need to replace your F50F1065 power box and would like a spare pair of cells. All the Parts from a new F300E are fully interchangable with any prior F50F of the same size. The Honeywell warranty for F50 F300 Replacement Parts is 2 years. Three LED’s indicate ON, Wash, and Check. WashLED lights when a decrease is sensed in the ionizer current (as the cells get dirty the ionizer current drops).

The Check LED indicates inadequate voltage from a possible cell short or excessive arcing. Size 4 x 2 x 2". Requires 4 conductor thermostat wire. Note: The W8600E is not compatible with the new Honeywell air cleaners (our current models). The new models use the W8600F1014 (white). Units manufactured in 1998 or later have a Series 2 power supply and require the W8600F. W8600E & W8600F Details HomeHoneywell Air Filters203371 - 16x12.5 - Pre Filter (2 Pack) 203371 - 16x12.5 - Pre Filter (2 Pack) F300, F50F EAC Operating Guide 16x25 duct or cabinet opening: Cleaning and Maintenance Tips for Honeywell Pre Filters: 50000293-002 - 16x12.5 - Post Filter (2 Pack) 50000293-002 - 16x12.5 - Post Filter (10 Pack) 50000293-004 - 20x12.5 - Post Filter (2 Pack) 203372 - 20x12.5 - Pre Filter (2 Pack) HC22E1003 Humidifier Pad w/ AgION Coating - 3 Pack Click the button below to add the 203371 - 16x12.5 - Pre Filter (2 Pack) to your wish list.
